How to Choose an Outdoor LED Display: 9 Project Conditions to Confirm

A site-first guide to defining requirements, comparing supplier quotations, and avoiding costly assumptions.

Published: 2026-08-25  |  Last Updated: 2026-08-25  |   Author: Vanxled Market Team

────────────────────────────────────────────────────────────────────

An outdoor LED display is not chosen by screen size, pixel pitch, brightness, and price alone. Those numbers only make sense after the site, content, operating conditions, maintenance plan, and project responsibilities are understood.

Two quotations can look similar on a spreadsheet while describing different projects. One supplier may be allowing for direct sun; another may be assuming shade. One may include front access, control equipment, and commissioning; another may leave them outside the price. Until those assumptions are visible, the totals are not truly comparable.

The practical answer: confirm nine project conditions before selecting the configuration—viewing geometry, sunlight and operating hours, environmental exposure, mounting and structure, maintenance access, content requirements, camera use, power and control infrastructure, and local approvals. Give the same brief to every supplier, then ask each one to explain its assumptions, exclusions, and evidence.

Key Takeaway

File name: outdoor-led-display-nine-project-conditions-cover.jpg
Alt text: Nine project conditions to confirm before choosing and quoting an outdoor LED display.

Table of Contents

1. Why Outdoor LED Display Selection Starts With Project Conditions

2. Condition 1: Viewing Distance, Angle, and Content Detail

   2.1 Define what viewers must actually see

   2.2 Check whether a finer pixel pitch adds useful detail

3. Condition 2: Sunlight Exposure, Brightness, and Operating Hours

   3.1 Design for the full day, not one headline number

4. Condition 3: Climate, IP Rating, and Environmental Protection

   4.1 What an IP rating does—and does not—tell you

   4.2 Match the evidence to the quoted model

5. Condition 4: Mounting Position, Wind Exposure, and Supporting Structure

   5.1 Separate product information from local engineering responsibility

6. Condition 5: Front vs. Rear Maintenance Access

   6.1 Follow the technician's real service route

7. Condition 6: Content Format, Screen Dimensions, and Native Resolution

   7.1 Test the content canvas before finalizing the cabinet grid

8. Condition 7: Camera Use, Refresh Rate, and Broadcast Testing

   8.1 Approve a camera workflow, not a refresh-rate claim

9. Condition 8: Power, Data, Control, and Monitoring Infrastructure

   9.1 Find the edges of the supplier's scope

10. Condition 9: Local Permits and Operating Restrictions

    10.1 Confirm local requirements before production

11. Outdoor LED Display RFQ Checklist

12. FAQ: Outdoor LED Display Selection

13. Final Takeaway

1. Why Outdoor LED Display Selection Starts With Project Conditions

An outdoor LED display is part of a larger installed system. The cabinets have to work with the structure, electrical distribution, signal path, content workflow, weather exposure, maintenance route, and local approval process.

That is why starting with a catalogue can send a project in the wrong direction. A buyer may spend time comparing pixel pitch or peak brightness while the more important question—what the display must do at this site—has not yet been answered.

A more reliable sequence is:

(1) document the project condition;
(2) identify which specifications and responsibilities it affects;
(3) understand the trade-off if that condition changes;
(4) request evidence for the proposed configuration; and
(5) record who owns design, installation, testing, and support.

This is not an argument for choosing lower specifications. It is an argument for choosing specifications for a reason. Extra brightness will not fix an unsuitable nighttime operating plan. An ingress-protection rating will not fix poor drainage or incorrectly installed field connections. A front-service cabinet will not help if technicians cannot safely reach the display.

A stronger specification cannot correct a wrong project assumption.

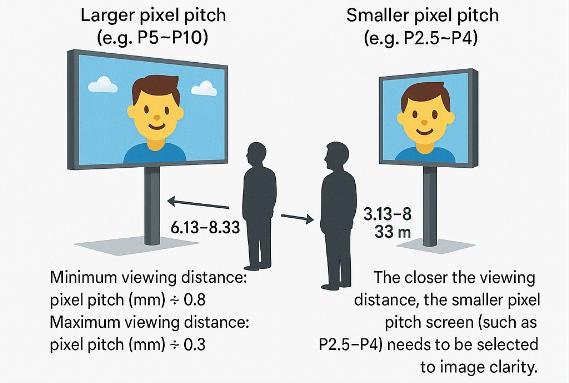

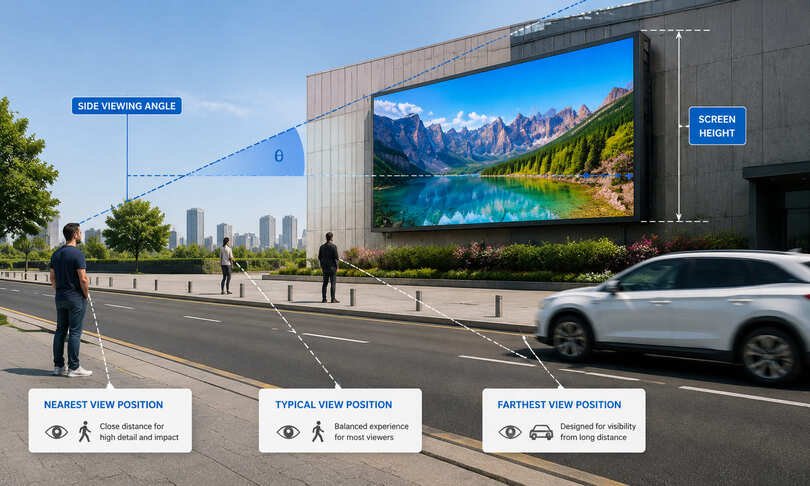

2. Condition 1: Viewing Distance, Angle, and Content Detail

A pedestrian trying to read a price and a driver seeing a three-word message do not have the same viewing task. Yet both projects may initially be described with little more than screen width, height, and a preferred pixel pitch.

2.1 Define what viewers must actually see

Record the nearest, typical, and farthest viewing positions; the usual and extreme angles; the screen height; and whether viewers will be walking, standing, seated, or moving in vehicles. Then identify the smallest text, number, logo, or graphic that must remain recognizable.

Those details influence pixel pitch, total pixel resolution, screen dimensions, content element size, aspect ratio, and processing. AVIXA's display-image-size framework also approaches display sizing through viewing tasks and viewer positions, rather than a single universal distance rule.

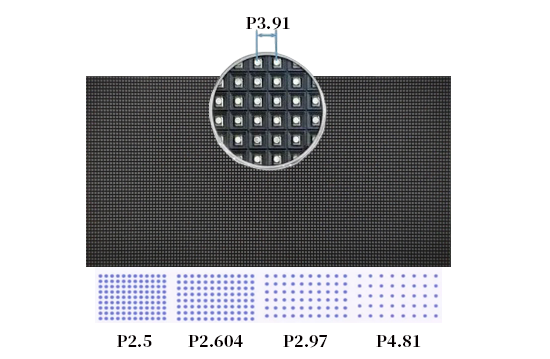

2.2 Check whether a finer pixel pitch adds useful detail

Ask the supplier for the total pixel dimensions and a mock-up using representative content at the proposed native resolution. If a finer option is offered, ask what the viewer will actually gain at the stated positions.

Once the required content is clearly readable, more pixel density may add cost, processing load, power demand, and spare inventory without adding a meaningful viewing benefit. The useful comparison is not simply P6 versus P8; it is what each option allows the intended audience to see.

3. Condition 2: Sunlight Exposure, Brightness, and Operating Hours

Brightness is often treated as a single selection number. The site experiences it as a changing condition.

A screen may face direct sun for part of the afternoon, sit in shade at another time, and operate near homes or traffic after dark. The configuration and control plan therefore need to cover the full operating schedule, not just the brightest hour.

3.1 Design for the full day, not one headline number

Confirm the orientation, direct-sun periods, surrounding reflections, daily hours, likely temperature conditions, and any light-sensitive surroundings. Decide whether automatic or scheduled dimming is needed and who will set it during commissioning.

For quotation review, request the conditions behind the stated brightness, the dimming method, relevant operating limits, power assumptions at the intended mode, and the proposed site-check procedure. CIE guidance provides useful context on obtrusive light, but the applicable limits still depend on the location and local rules.

The better question is: what brightness and control strategy will keep the display usable throughout this site's real operating day?

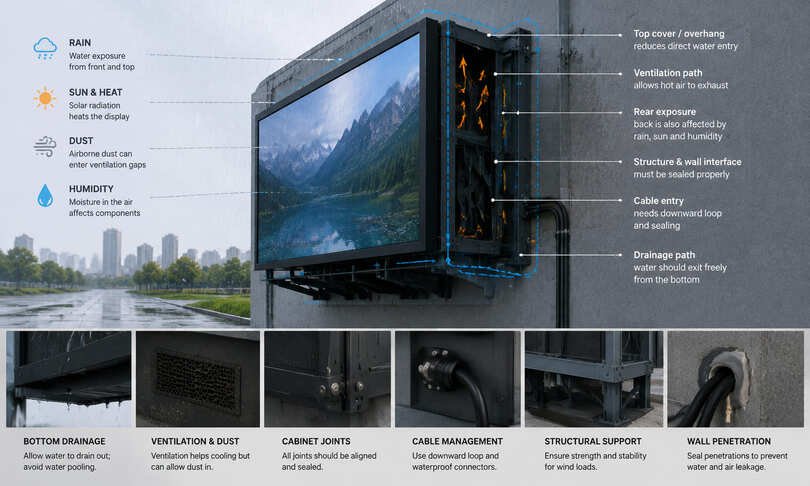

4. Condition 3: Climate, IP Rating, and Environmental Protection

4.1 What an IP rating does—and does not—tell you

IEC 60529 defines degrees of protection provided by electrical enclosures. It is relevant evidence for ingress protection, but it is not a complete outdoor-survival claim.

Rain direction, airborne dust, humidity, heat, rear-side exposure, drainage, condensation, salt, pollution, cleaning methods, cables, and field-installed connectors can all affect the finished system. A project near the coast, for example, raises questions that a rain-and-dust classification alone does not answer.

These conditions may change the enclosure, sealing, materials, coatings, ventilation, drainage, connectors, or installation details. They also affect which tests or documents are worth requesting.

4.2 Match the evidence to the quoted model

When a supplier presents environmental evidence, check five things: the exact model, the tested surfaces or assembly, the test method, the test conditions, and any installation limitations. A product-family statement should not automatically be assumed to cover every cabinet and installation arrangement.

This is the key distinction: an IP rating describes enclosure ingress protection under defined conditions; it does not settle heat, corrosion, drainage, connector, or installation risk.

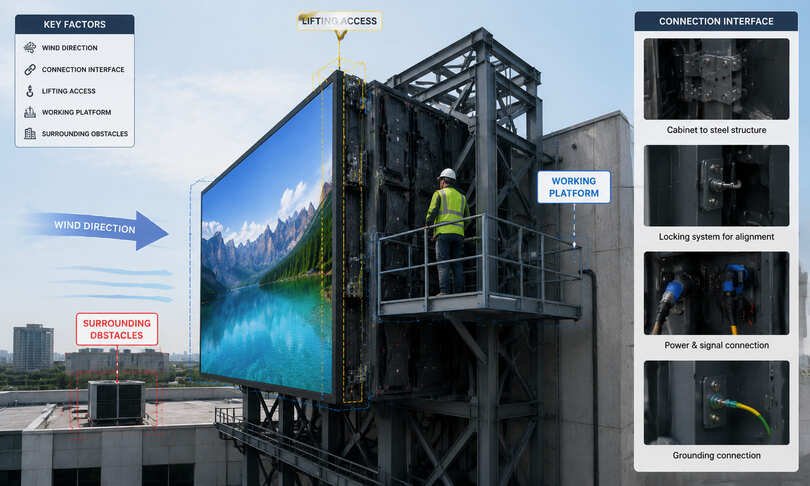

5. Condition 4: Mounting Position, Wind Exposure, and Supporting Structure

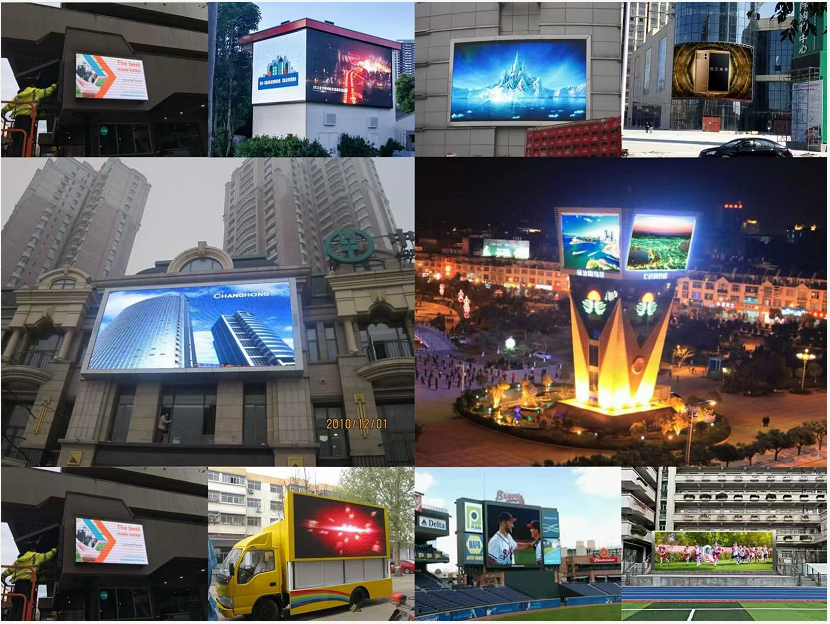

A wall-mounted display, rooftop billboard, pole sign, façade installation, and freestanding structure may use similar display cabinets, but they do not present the same mechanical problem.

Give the supplier the installation type, dimensions, elevation, orientation, nearby obstructions, available support information, site drawings or photographs, and lifting access. These inputs affect total weight, interfaces, wind exposure, installation sequence, tolerances, and service access.

5.1 Separate product information from local engineering responsibility

The quotation should show cabinet and system weights, dimensions, connection details, tolerances, relevant structural inputs, and exclusions. It should also say whether steelwork, anchors, lifting equipment, façade interfaces, engineering review, and onsite installation are included, excluded, or still provisional.

Standards such as ASCE/SEI 7-22 provide structural-load requirements in particular markets; they are not universal design instructions. The display supplier can provide product and interface data. The final structure and applicable requirements need verification by the appropriately qualified local professional.

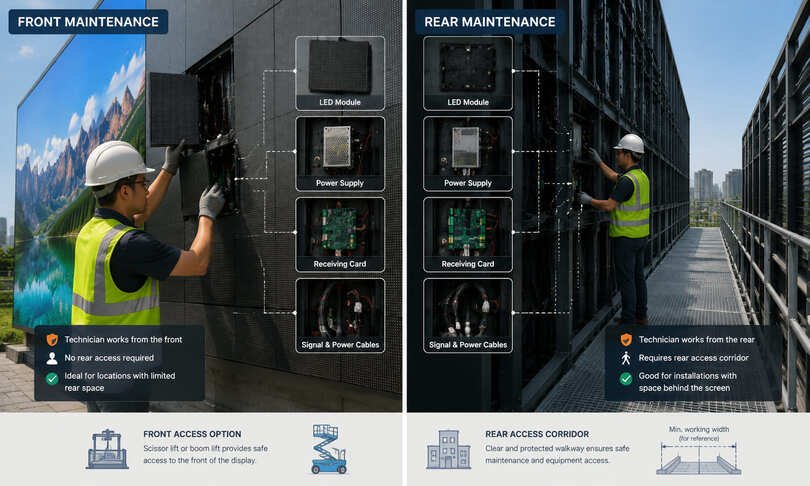

6. Condition 5: Front vs. Rear Maintenance Access

“Front service” sounds reassuring when there is no space behind a screen. But the label answers only the first question: from which side can a component be removed?

It does not show whether a technician can reach the display safely, remove the required part, handle cables and connectors, or work without blocking a road or public area.

6.1 Follow the technician's real service route

Walk through the maintenance task from arrival to restart. Check front and rear working space, lift or platform needs, access to modules, power supplies, receiving cards, hubs and cabling, acceptable downtime, spare storage, and who supplies labor and access equipment.

Then request a service-access drawing, component replacement sequence, critical-spares recommendation, and fault-reporting procedure. Rear service can be practical when a protected corridor exists; front service can be the right answer when rear space does not. The better design is the one the project team can use safely and repeatedly after installation.

7. Condition 6: Content Format, Screen Dimensions, and Native Resolution

A display can be mechanically correct and still create a content problem every week.

This usually happens when the cabinet grid is finalized before anyone checks the actual content. Advertising video, price lists, schedules, live data, safety messages, scores, and wayfinding do not place the same demands on screen geometry or resolution.

7.1 Test the content canvas before finalizing the cabinet grid

Provide representative files and identify the smallest important text or graphic. Confirm the master aspect ratio, update workflow, unusual shapes or orientations, and who will adapt content after handover.

Ask for a native-resolution map that shows the total pixel canvas, scaling, cropping, black bars, and custom-shape treatment. Review a few realistic layouts before approving the screen dimensions. A mismatch may be small on the quotation and persistent in operation: the buyer can end up paying for new crops, redesigned artwork, or unreadable content every time a campaign changes.

8. Condition 7: Camera Use, Refresh Rate, and Broadcast Testing

A display that looks stable to the eye can still show banding, scan lines, flicker, or unstable exposure on camera. Refresh rate matters, but it is only one part of that result.

Scan method, driver configuration, processing, grayscale behaviour, brightness, camera frame rate, shutter settings, shooting distance, and content can all influence the recorded image.

8.1 Approve a camera workflow, not a refresh-rate claim

If the display will appear in livestreams, broadcasts, recorded video, slow motion, or social content, state the intended camera workflow before approving the configuration. Give the supplier representative frame rates, shutter settings, distances, content, and brightness changes where these are known.

For a camera-critical project, request a test plan with documented display, processor, and camera settings. Recorded evidence can be useful, but only when the test conditions resemble the intended use. A high refresh-rate number by itself is not a camera-performance guarantee.

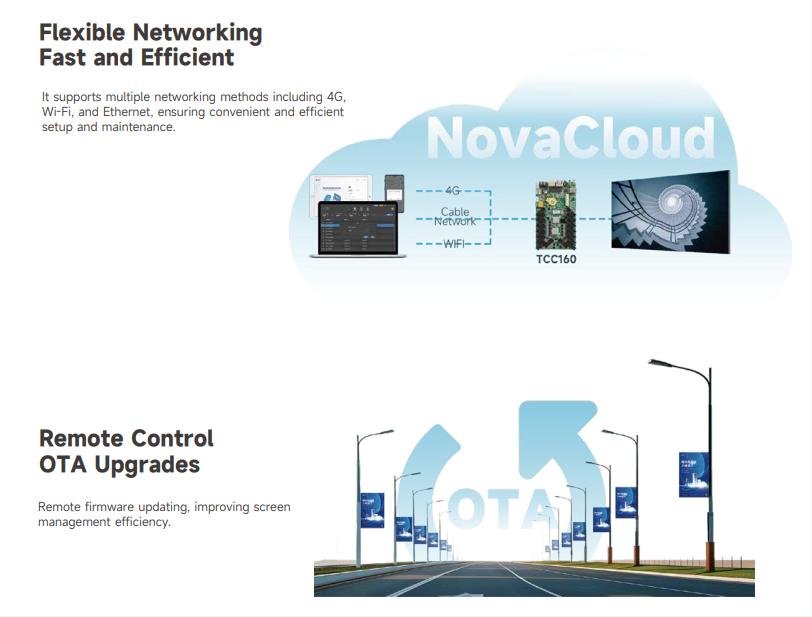

9. Condition 8: Power, Data, Control, and Monitoring Infrastructure

The display cabinets may be the most visible part of the project, but they do not operate alone. Power distribution, signal routing, controllers, media players, network access, monitoring, and commissioning all sit around them.

9.1 Find the edges of the supplier's scope

Confirm the local voltage and frequency, usable capacity, cable distances, distribution route, isolation points, controller location, network reliability, monitoring needs, and any backup or redundancy requirement. Record who owns grounding, surge protection, remote access, and content or control accounts.

The supplier should provide an appropriate power schedule, signal architecture, controller and media-player scope, network requirements, operating assumptions, and commissioning boundary. The local electrical designer still needs to verify the final installation against the applicable project requirements.

Do not compare quotation totals until you know where each supplier's power, signal, network, and commissioning responsibility ends.

10. Condition 9: Local Permits and Operating Restrictions

Local requirements can affect screen area, height, structure, electrical work, brightness control, animation, operating hours, road proximity, inspection documents, and schedule. Discovering one of these restrictions after production is not a paperwork inconvenience; it can force a design or scope change.

10.1 Confirm local requirements before production

Ask the responsible authority or qualified local adviser which planning, signage, building, structural, electrical, road, and public-safety rules apply. Confirm which documents are required, who prepares and signs them, whether evidence must relate to the exact installed configuration, and who submits and closes the approval process.

The display supplier should state which product and technical documents it can provide. The local project team should state who owns installation approval.

A product certificate and approval of the installed project are not the same thing.

11. Outdoor LED Display RFQ Checklist

Once the nine conditions are documented, send the same brief to every supplier. This turns the question from “Who has the lowest cabinet price?” into “Which proposal covers the same project with the fewest hidden assumptions?”

Before approving a quotation, get five answers in writing:

(1) Which project assumptions were used?
(2) What is included, excluded, or provisional?
(3) Which evidence applies to the exact proposed model?
(4) Who owns structural, electrical, installation, testing, approval, and support duties?
(5) How are spares, warranty, freight, labor, commissioning, and escalation handled?

The lowest equipment price is not necessarily the lowest project cost. It may simply leave work or responsibility for someone else to price later.

12. FAQ: Outdoor LED Display Selection

12.1 What information is needed to choose an outdoor LED display?

Provide the location, screen dimensions, viewing positions, representative content, sunlight and environmental exposure, mounting concept, maintenance access, camera use, operating hours, available power and network, installation market, and known approval requirements. Screen size alone is not enough to finalize a configuration.

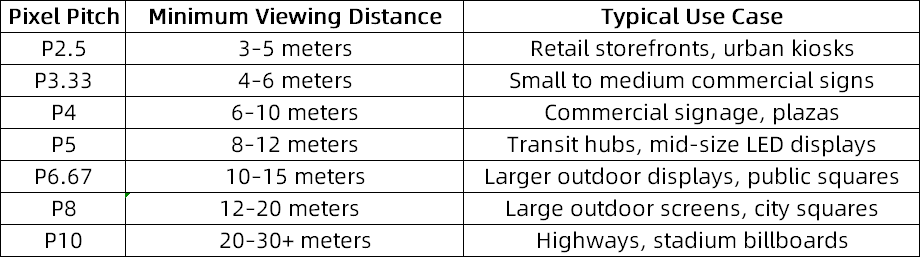

12.2 Can pixel pitch be selected from viewing distance alone?

No. Distance is important, but viewing angle, screen size, audience movement, content detail, text size, and the viewing task also affect useful pixel density. Use distance rules for initial screening, then check pixel calculations and representative content.

12.3 How bright should an outdoor LED display be?

There is no single correct value for every site. Orientation, direct sun, shade, operating schedule, temperature, contrast, nighttime conditions, and local restrictions all matter. Compare brightness under stated conditions together with the proposed dimming strategy.

12.4 Is IP65 enough for every outdoor LED display?

Not necessarily. An IP designation addresses enclosure ingress protection under defined conditions. It does not by itself establish suitability for heat, corrosion, condensation, drainage, connector installation, or every outdoor environment.

12.5 Is front maintenance better than rear maintenance?

Neither is automatically better. Front service may suit a site without rear space; rear service may suit a protected service corridor. Choose the method that lets technicians reach all required components safely with acceptable downtime.

12.6 Does a high refresh rate guarantee good camera performance?

No. Refresh rate is one factor among scan method, processing, driver configuration, brightness, grayscale behaviour, camera frame rate, shutter settings, shooting conditions, and content. Test camera-critical projects under representative conditions.

12.7 How should buyers compare outdoor LED display quotations?

First make sure every supplier is responding to the same project brief. Then compare the proposed model, resolution, brightness conditions, environmental evidence, service access, structural interface, power and control scope, spares, warranty, freight, commissioning, exclusions, responsibilities, and acceptance tests.

13. Final Takeaway

Choosing an outdoor LED display is not a contest for the smallest pixel pitch, highest brightness, largest IP number, or lowest cabinet price. Those figures become useful only after the viewing, environmental, structural, maintenance, content, camera, infrastructure, and approval conditions are known.

The working method is straightforward: Define the site → identify what each condition changes → request evidence for the proposed model → expose assumptions and exclusions → compare suppliers on the same project basis.

If you are preparing an RFQ, share the site photos or drawings, screen dimensions, viewing positions, sun orientation, environment, maintenance route, sample content, camera requirements, operating schedule, available power, installation market, and timeline.

Vanxled can use those inputs to review the configuration assumptions, evidence requests, maintenance plan, and quotation boundaries before the project is finalized.

About Vanxled

Vanxled is an engineering-first LED display manufacturer in China. We help overseas buyers reduce uncertainty in product selection, sourcing, delivery, and long-term operation.

For outdoor LED display projects, our review starts with the site and operating requirements before moving to a configuration.

Share your project brief with Vanxled for a practical project-fit review.

Technical References & Sources

1. Display image size and viewing needs: AVIXA V202.01:2026 supports evaluation of viewing tasks and viewer positions at the system level.

2. Viewing area and content element size: AVIXA display-size guidance explains content-based image sizing and viewer positions.

3. Ingress protection: IEC 60529 defines degrees of protection provided by electrical enclosures.

4. Environmental testing: IEC 60068-2-52 defines a cyclic salt-mist test method for applicable exposure assessments.

5. Obtrusive light: CIE PS 003:2025 provides context for unwanted effects associated with obtrusive light and light pollution.

6. Structural loads: ASCE/SEI 7-22 is an example of structural-load requirements used in the United States; local project requirements remain authoritative.

7. Electric-sign compliance context: UL Solutions provides North American electric-sign and sign-component certification context.
