Best Pixel Pitch for Outdoor LED Advertising Screens | 2025 Vanxled Buying Guide

Outdoor LED screen pixel pitch plays a critical role in image clarity, viewing distance, and advertising impact. This 2025 guide compares pixel pitch options, from P2.5 to P10 with real-world examples, technical specs, and application insights to help advertisers, integrators, and media owners choose the best LED screen for their needs.

This guide is written for media buyers, LED screen integrators, and advertising professionals seeking to maximize ROI in outdoor campaigns. By comparing pixel pitch specifications and real-life use cases, we help you avoid costly mismatches and confidently select the best-fit LED display.
Keep reading to discover which pixel pitch works best for urban billboards, mall exteriors, stadiums, and roadside installations.

Table of Content

1. What’s Pixel Pitch mean in Outdoor LED Screens?

2. What’s are typical Outdoor Pixel Pitch Options in 2025?

3. P3 vs P4 LED Screens: Which Is Better for Outdoor Use?

4. P2.5 vs P3: Are Smaller Pixel Pitches Worth It?

5. P4 vs P6 LED Screens: Which Suits Mid-Range Distances?

6. P5 vs P10: A Big Jump in Pixel Pitch and Performance?

7. P5 vs P8 vs P10: Choosing for High-Traffic Locations

8. Factors Beyond Pixel Pitch: What Else Impacts LED Display Performance?

9. FAQ: Outdoor LED Pixel Pitch Comparison

10. Final Recommendation: How to Choose the Best Pixel Pitch for Your Outdoor LED Project

1. What’s Pixel Pitch mean in Outdoor LED Screens?

Pixel pitch refers to the distance (in millimeters) between the centers of two adjacent pixels. A smaller pixel pitch means more pixels per square meter, resulting in higher resolution and image clarity. In outdoor applications, pixel pitch directly impacts visibility at a distance and overall LED screen resolution.

Key Terms to Know:

• Pixel Pitch (mm): The distance between pixels.

• Viewing Distance: How far away viewers can see clear content.

• Resolution: Number of pixels per square meter—affects detail and legibility.

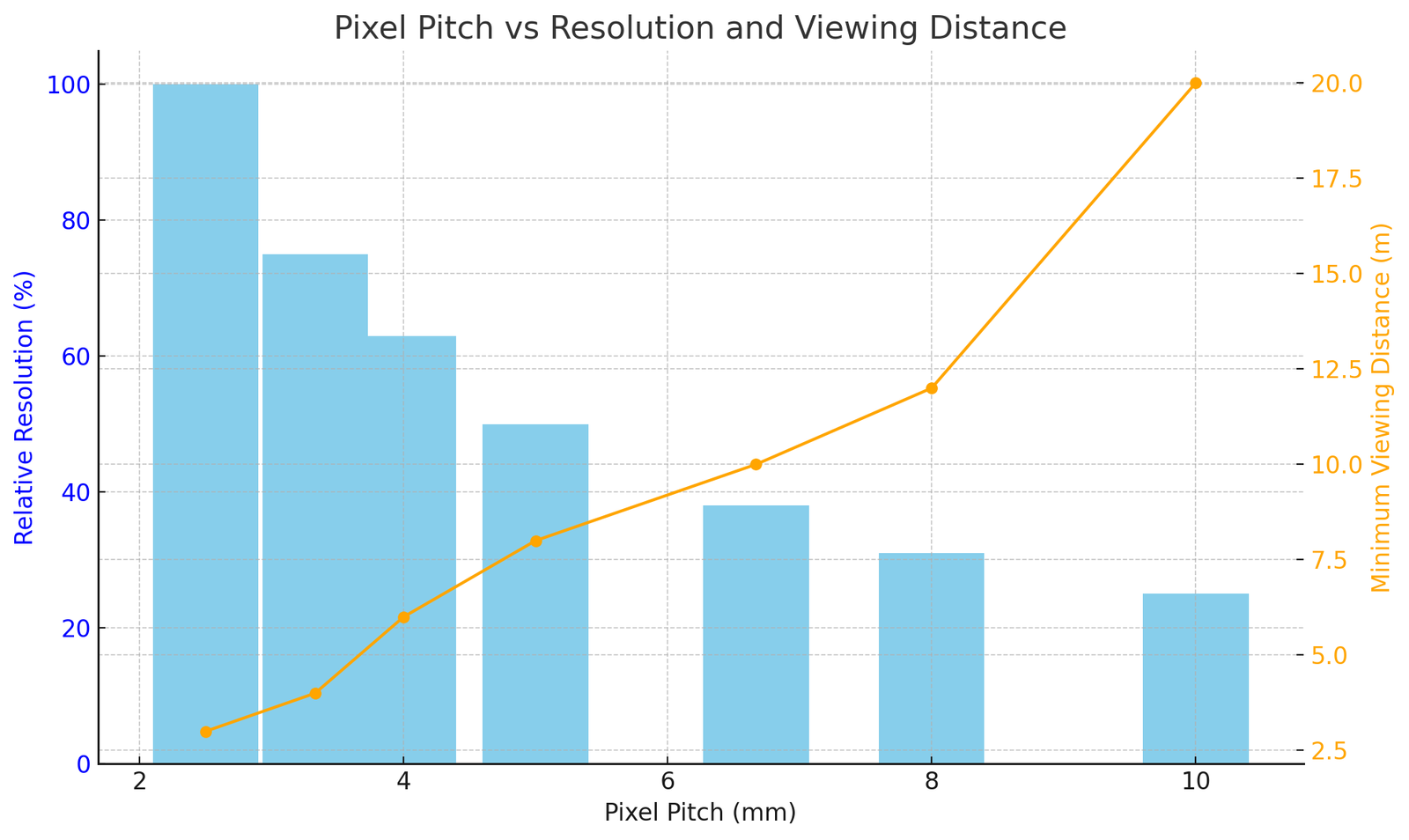

Pixel Pitch vs Resolution vs Viewing Distance

This chart shows the relative resolution and recommended minimum viewing distance for LED displays of different pixel pitch at the same size:

• The blue bar chart shows how the decreases as the dot pitch increases.

• The orange line chart shows how the required minimum viewing distance increases as the dot pitch gets larger.

2. What’s are typical Outdoor Pixel Pitch Options in 2025?

Here’s a breakdown of the most commonly used outdoor LED screen pixel pitches in 2025, including viewing distances and best-fit scenarios:

• Short-range HD scenario (≤10 meters): P3.33/P4 is preferred (e.g., flagship stores, stages);Mid-to-long-range balanced scenario (10~20 meters)

• P5/P6.67 offers the best cost performance (e.g., shopping, gymnasiums)

• Extremely long-range or low-cost requirements (≥20 meters): P8/P10 is more economical (e.g, highway advertising, community screens)

 Tip: When in doubt, use the rule of thumb—Minimum Viewing Distance ≈ Pixel Pitch × 1,000 in mm.

3. P3 vs P4 LED Screens: Which Is Better for Outdoor Use?

When comparing P3 LED screens to P4 outdoor LED displays, the choice depends on viewing distance and visual detail. P3 offers a higher resolution for close viewing but comes at a higher cost and power consumption.

• P3 is ideal for boutique outdoor advertising or high-end retail windows with short viewing distances.

• P4 suits broader spaces like courtyards, building facades, or corporate plazas.

4. P2.5 vs P3: Are Smaller Pixel Pitches Worth It?

While P2.5 LED displays provide outstanding image clarity, especially for 4K content and high-density visuals, the cost and maintenance may outweigh benefits in large outdoor installations.

• Use P2.5 for luxury storefronts or outdoor installations with high pedestrian traffic.

• Choose P3 if budget, size, and performance must balance.

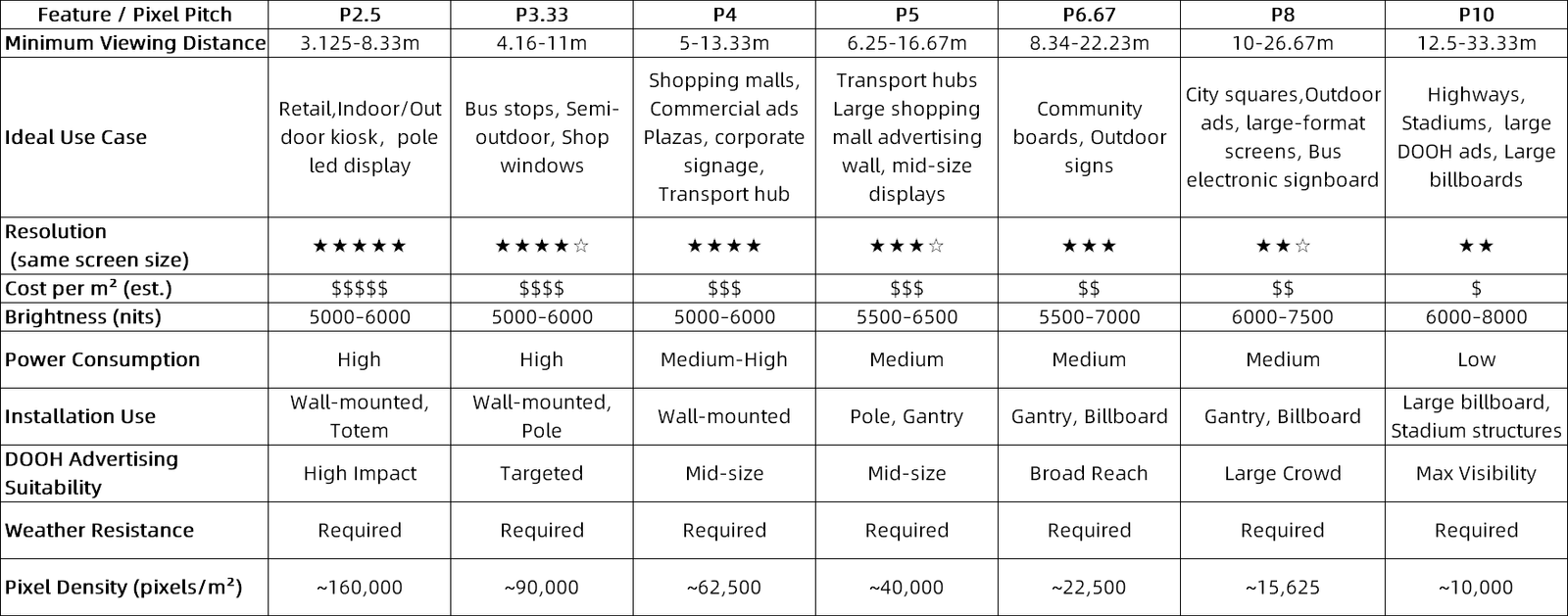

✅ Feature Checklist Across Pixel Pitches (P2.5 to P10)

5. P4 vs P6 LED Screens: Which Suits Mid-Range Distances?

For medium-scale outdoor LED installations, both P4 and P6.67 LED displays perform well. P4 LED screens offer greater resolution but require more power and tighter installation specs. P6.67 LED screens are more cost-effective for large-area coverage.

Use Case Comparison:

• P4: Government signage, medium corporate buildings.

• P6.67: Open-air events, schools, stadium corridors.

6. P5 vs P10: A Big Jump in Pixel Pitch and Performance

P5 LED screens bridge high resolution and larger viewing distances, making them a go-to for mall exteriors, stadium entrances, or transportation hubs.

P10 LED screens dominate the highway and stadium LED billboard market due to lower cost per m² and long-distance readability. However, image clarity drops significantly at close range.

 [Insert table: P5 and P10 outdoor led display in testing]

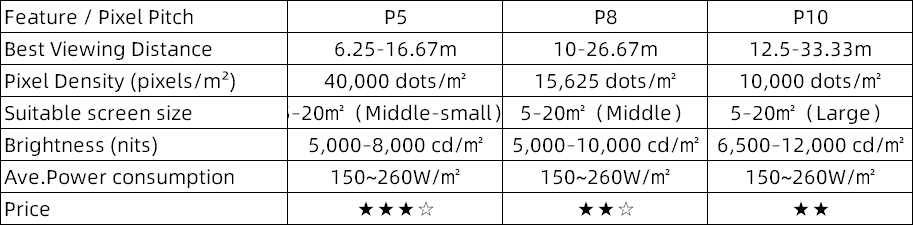

7. P5 vs P8 vs P10: Choosing for High-Traffic Locations

In large urban centers, P5, P8, and P10 LED displays are widely used for DOOH advertising. Here's how they compare:

8. Factors Beyond Pixel Pitch: What Else Impacts LED Display Performance?

While pixel pitch is crucial, several other factors determine your screen’s success:

8.1 Brightness & Auto-Dimming: Ensure visibility under direct sunlight.

8.2 IP Rating: Look for IP65 or higher for water/dust resistance.

8.3 Installation Methods: Wall-mounted, pole-mounted, or freestanding—each impacts structural needs.

8.4 Content Management: Cloud-based CMS enables real-time updates across locations.

8.5 Certifications: CE, FCC, and RoHS may be required for legal import in many countries.

9. FAQ: Outdoor LED Pixel Pitch Comparison

Q1: What's the difference between P3 and P5 LED screens?

A: P3 has higher resolution, ideal for close-range viewing. P5 is more cost-effective for larger distances.

Q2: Which is better, P3 or P4?

A: P3 offers better detail but is more expensive. P4 balances resolution and budget.

Q3: What's the difference between P5 and P10?

A: P5 is for mid-range use; P10 is optimized for long-range visibility at highways or stadiums.

Q4: Which pixel pitch should I choose for city billboards?

A: P5, P8, or P10 depending on audience distance and resolution expectations.

Q5: How long do outdoor LED screens last?

A: Most high-quality LED screens last 8–10 years with proper maintenance.

Q6: Can outdoor LED displays work in freezing weather?

A: Yes. Choose models with thermal management and appropriate IP ratings.

10. Final Recommendation: How to Choose the Best Pixel Pitch for Your Outdoor LED Project

When choosing the best pixel pitch for outdoor LED screens, consider your viewing distance, application, budget, and maintenance capacity. Here's a quick summary:
