What is an Outdoor Dual-Pillar LED Display?

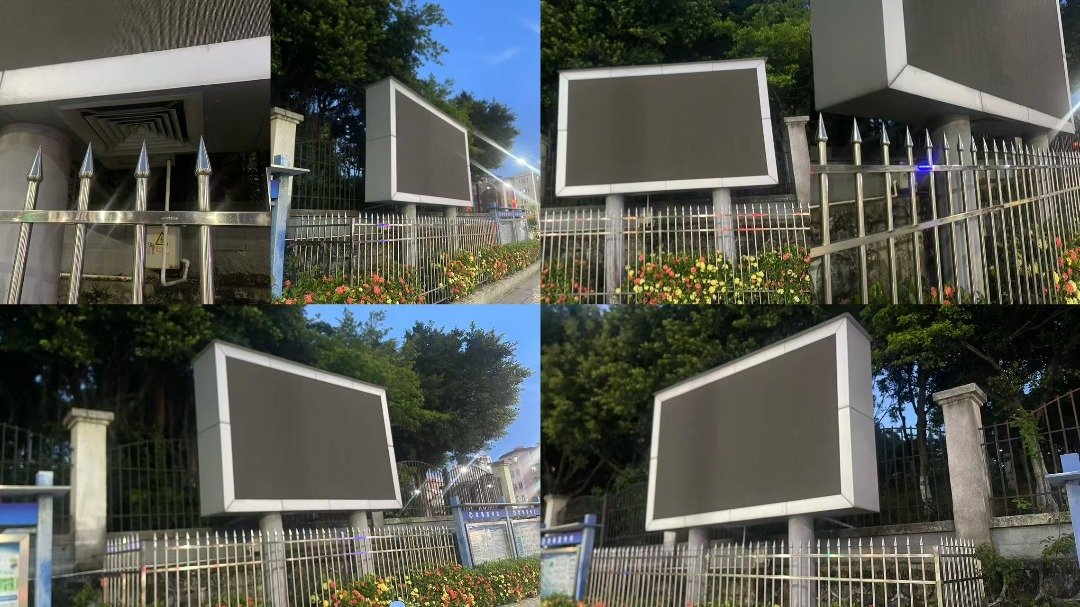

An outdoor dual-pillar LED display is a fixed installation screen supported by two steel columns. It features high structural stability, wide visibility, and strong adaptability to complex outdoor environments. Commonly used in urban transportation hubs, commercial plazas, government announcements, advertising promotions, and large-scale public events, it serves as an efficient solution for information broadcasting and brand promotion.

1. Preliminary Planning: Clear Goals, Better Preparation

1.2. Application Scenarios and Requirements

• Purpose: Advertising, public announcements, traffic guidance, etc.

• Screen Size: Typically 10–50㎡ or larger.

• Resolution: P3–P5 recommended for close viewing; P6–P10 for long-distance viewing.

• Pixel Pitch: Should match site size and viewing distance for optimal results.

1.2. Site Survey

• Soil & Foundation: Ensure ground load-bearing capacity for pillar foundation.

• Sunlight Exposure: Consider direct sunlight to avoid image washout.

• Wind Load: Confirm compliance with local wind resistance standards.

• Obstructions: Avoid trees or buildings blocking visibility.

1.3. Compliance & Approvals

• Outdoor Advertising Permit: Ensure legal and compliant content publishing.

• Power Supply Approval: Confirm sufficient capacity for large LED screens.

• Recommendation: Regulations vary by region—consult local authorities in advance.

2. Customized Production: Tailored Solutions

Case Example

• Size: 6m (W) × 3m (H)

• Viewing Distance: 5–15m

• Environment: Average 10h/day direct sunlight, local average temp 28℃

• Power: 220V

• Maintenance: Rear access with sufficient space

Customized Design

• Cabinet Size: 960×960mm standard cabinets; final screen size 5.76×2.88m (≈16.6㎡).

• Pixel Pitch: P5, ideal for 5–15m viewing distance.

• Brightness: ≥6000 nits for clear visibility under strong sunlight.

• Power & Maintenance: Compatible with 220V supply; rear maintenance design for convenience.

Production Process

• Deposit: 50% upfront payment to start production.

• Lead Time: 10–25 working days, typically around 15 days.

• Quality Control: Strict production scheduling ensures timely delivery.

3. Assembly & Aging Test: Guaranteed Reliability

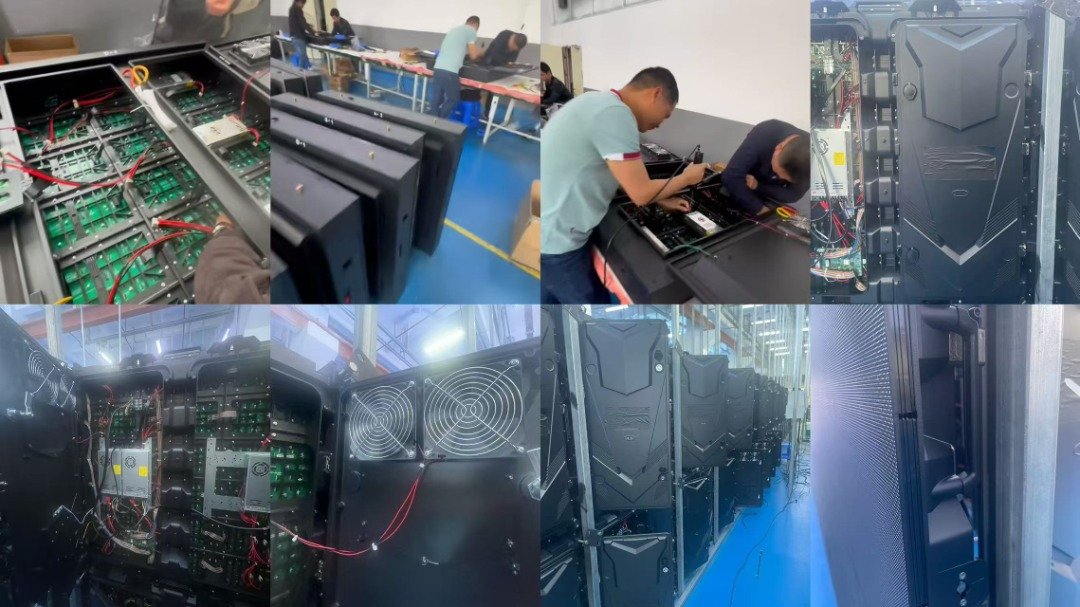

3.1. Precision Assembly

• Installation of LED modules, power supplies, and receiving cards.

• Ensures seamless module alignment and firm structure.

3.2. Strict Aging Tests

• 72+ hours of high-temperature and full-load lighting tests.

• Tests include signal stability, brightness uniformity, and thermal performance.

• Ensures long-term reliability in outdoor environments.

4. Delivery & Installation: Flexible Service Options

4.1. On-Site Installation Guidance

Professional engineers dispatched to provide full installation and debugging support—ideal for first-time buyers.

4.2. Custom Steel Structure + Synchronized Delivery

Tailor-made steel structure shipped together with the LED display for quick installation by local teams.

4.3. Independent Installation Support

For experienced customers: detailed installation manuals and remote technical support are provided.

5. Conclusion & Value-Added Services

From planning, customized production, assembly, and testing to delivery and installation, every outdoor dual-pillar LED display project requires careful design and strict execution.

• Customized design for each project.

• Reliable production and quality inspection processes.

• Flexible installation services and technical support.

If you would like to learn more about outdoor dual-pillar LED display specifications, installation solutions, or pricing, feel free to contact us. We provide end-to-end support—from planning to final activation—helping your project succeed with confidence.
